TP-LINK TL-SG1005D

Catalogue
320x
0
Switch 5port Gigabit 10/100/1000 Mb/s
Price incl. VAT £17.11 £14.47
Price excl. VAT £12.06
   Return products within two months £0.72 Possibility to return products within two months
In stock > 10 pcs
Add to Cart Hassle-free One-click buying using preset Shipping and Payment options.
Warranty 24 months Code:  TP666 Product Number:  TL-SG1005D Manufacturer's Website:
We guarantee Christmas delivery Add to the list Christmas Present List Add to the list My Christmas Wishlist
Helpdesk Print
TP-LINK TL-SG1005D £17.11 £14.47 In stock > 10 pcs
Buy
4.7
Rated by 320 users
5 232x
4 71x
3 15x
2 0x
1 2x
5 000+ Customers Purchased
94 % Customers Recommend
99% Reliability - very reliable product with low level of warranty claims
More Information

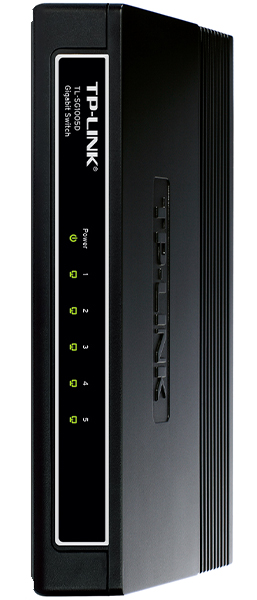

TP-LINK TL-SG1005D

Quality 5 port gigabit switch from TP-LINK an ideal way to quickly expand your wired network in your home or small business. All five ports supports Auto MDI/MDIX and you do not have to worry about which cable you connect. With the ability to turn off individual inactive ports in addition siwtch reaches up to 70% lower consumption compared to competitive devices in the same category and in its operation and saves the environment and your wallet.


Fast communication


The ports on the switch are equipped with Auto-Negotiation and support Auto MDI/MDIX, so you do not have to deal with crossover cables or ports outbound connection (Uplink). Use non-blocking switching architecture the switch forwards and filters packets full wire speed and ensures maximum throughput. Together with the framework Jumbo 15K In addition, there was a significant increase of transmission speed when transferring large files.

Easy to use


Thanks to the automated functions is set-up and operation of the router very easy and does not require any complex knowledge for its proper functioning. No complicated adjustment is not necessary, just connect the cables and switch automatically detects cable type and speed of other devices on the network and optimizes the network for maximum efficiency.










Specifications:

Supported standards:
IEEE 802.3
IEEE 802.3 u
IEEE 802.3 ab
IEEE 802.3x

Supported protocols:
CSMA/CD, TCP/IP

Basic functions:
Wire-speed Performance
Auto-learning MAC addresses, Auto-aging
Support for IEEE 802.3 x flow control for Full-Duplex mode
Support backpressure for Half-Duplex mode

The feedback bandwidth (Backbound Bandwidth):
10 Gb/s

Table MAC addresses:
1,024 positions

Forwarding Rate:
10BASE-T: 14,880 pps/port
100BASE-TX: 148,800 pps/port
1000BASE-T: 1488000 pps/port

Transmission method:
Store-and-Forward

Ports:

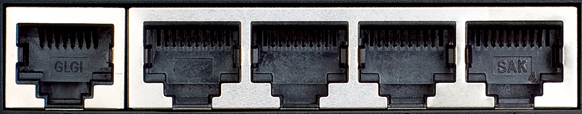

5x RJ45 10/100/1000 Mb/s Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Supported media types:
10Base-T: UTP category 3, 4, 5 with a maximum length of 100 m
EIA/TIA-568 100U STP cable with a maximum length of 100 m
100Base-Tx: UTP cable, Category 5, 5e with a maximum length of 100 m
EIA/TIA-568 100U STP cable with a maximum length of 100 m

LED indication:
Power, activity and status of each exchange

Safety and emissions:
FCC, CE

Dimensions:
165 x 108 x 28 mm

Operating temperature:
0 ° C ~ 40 ° C

Power:
Using an external power adapter

Specifications
Compare
Type
Desktop
Report an error
Done!
Switching capacity
10 Gb/s
Report an error
Done!
Max. transmission speed
1 Gbit
Report an error
Done!
RJ-45
5 piece(s)
Report an error
Done!
Width
165 mm (16.5 cm)
Report an error
Done!
Dimensions
Height
28 mm (2.8 cm)
Report an error
Done!
Depth
108 mm (10.8 cm)
Report an error
Done!
More Specifications
Note:

.


Online chat

Dear customer, your question you can send us a message via the contact form here, respectively. you can solve your query online using chat. If you want to use the chat log , please.

Specifications can be changed without notice. Images are for illustrative purposes only. Retail Price (MSRP) means the manufacturer's/supplier's suggested retail price.

There are no posts in this discussion.
Need more information about this product? You can now ask the online cummunity a question right here, safely and anonymously!
Ask a question now
Forum TP-LINK TL-SG1005D
4.7
Rated by 320 users
5 232x
4 71x
3 15x
2 0x
1 2x
5 000+ Customers Purchased
94 % Customers Recommend
99% Reliability - very reliable product with low level of warranty claims
More Information
Customer 25/02/2015
Simple, runs for six months in a row and no problem. I have bought a second 8-port, which runs for 2 years in a row and also no problem.

Translated by Google Translate
Viliam, Bratislava 19/03/2015
is quick, even using 1Gbit / s transmission works seamlessly
Translated by Google Translate
Peter Varga 02/02/2015
Sadly adapter strongly buzzing, can cause sleep disturbances al. insomnia. Ludia in the higher age (over 50) I do not hear these frequencies, team it possible not mind. Pouciva adapter to the outlet and 9V 0.6A.
  adapter strongly buzzing
Translated by Google Translate
Jaroslav, Rychnov nad Kněžnou 21/01/2015
Low price Sufficient power Nothing
Translated by Google Translate
Customer, Karlovy Vary 23/01/2015
Excellent, satisfaction, eliminates errors and for correct travels 1000Mb
Translated by Google Translate
Firm, Bratislava 15/05/2015
Vsetko OK, even after the year above USING
Translated by Google Translate
Jakub, Brno 14/12/2014
works on the switch, perhaps there is nothing to spoil
Translated by Google Translate
Dušan 13/04/2015
Reasonable price works anything significantly
Translated by Google Translate
Michal, Praha 10 02/04/2015
It works as a number of ports
Translated by Google Translate
Customer 12/04/2015
Dissatisfied
Vydarenyhas greedily GLAN switch lightweight plastics that can be a problem during a hard cable will
Translated by Google Translate
